color display
easy software
2 versions
On this page:

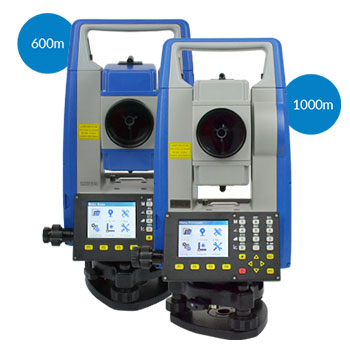

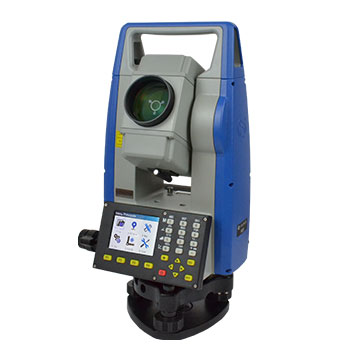

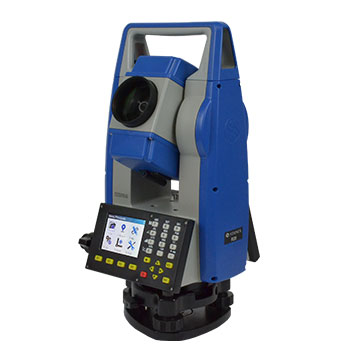

The R20 range is composed of 3 versions, the R20 1000m model with 2″ angular accuracy, the R20 1000m model with 1″ angular accuracy and the R20 600m model with 2″ angular accuracy.
The three models offer optimum performance up to 5000 m with prism and 1000 m or 600 m reflectorless. The entire R20 range is equipped with a high-performance, illuminated reticle telescope that provides the best quality of observation, whatever the environmental conditions.
The programs on board of these models of total stations make them suitable for any work in construction, cadastral, mapping and staking, through a user-friendly interface. Thanks to the presence of Bluetooth connection, it is possible to connect an external controller, giving the possibility to use a customized field software.
ONE DAY OF CONTINUOUS FIELD WORK
Thanks to the low power consumption circuit design R20 gives the opportunity to continuously work for more than 22 hours.
LIMITLESS DISTANCE MEASUREMENTS
By using a digital phase laser ranging technology, R20 guarantees high accuracy measurements: 1000m or 600m (depending on the model) in reflectorless mode and up to 5000m using a single prism, with millimeter accuracy.
TEMPERATURE PRESSURE SENSORS
Variations in temperature and pressure have a negative impact on the accuracy of distance measurements. R20 allows setting the values of temperature and pressure to ensure the precision of distance measurements.
LOCK DRIVES & TRIGGER KEY
Ergonomic clamps and knobs to make target collimation fast and accurate using both the hands. Start the measure using the trigger key located on the side of the instrument.
FAST, ACCURATE, RELIABLE
Measuring distances with high angular accuracy make any job extremely cost effective and reliable. The wide range of application software allows to complete the Surveyor’s tasks directly in the field.
EASY CONNECTIVITY
Quick import & export of data through a USB dongle. A Bluetooth connection enables the R20 to comunicate with a handheld device, giving the possibility to use a custom field software, such as Stonex Cube-a.
Yes, it’s possible to connect R20 to Cube-a via BT. In this way, the user can manage the total station and the survey directly from Cube-a.
Yes, R20 language can be changed via FW update. The available language for R20 are English, Italian, Spanish, Portoguese, French, Polish, Turkish, Greek, German, Russian.
R20 jobs can be exported in .txt format and .r20 format (proprietary fieldbook). If instead the user works with Cube-a he can export R20 jobs in all the formats available in Cube-a.
It’s possible to use an USB key to export the survey file from the TS to the PC.
In March 2022 Stonex had the opportunity to carry out a series of surveys inside and outside the “Torretta Viscontea” located in the Monza Park
